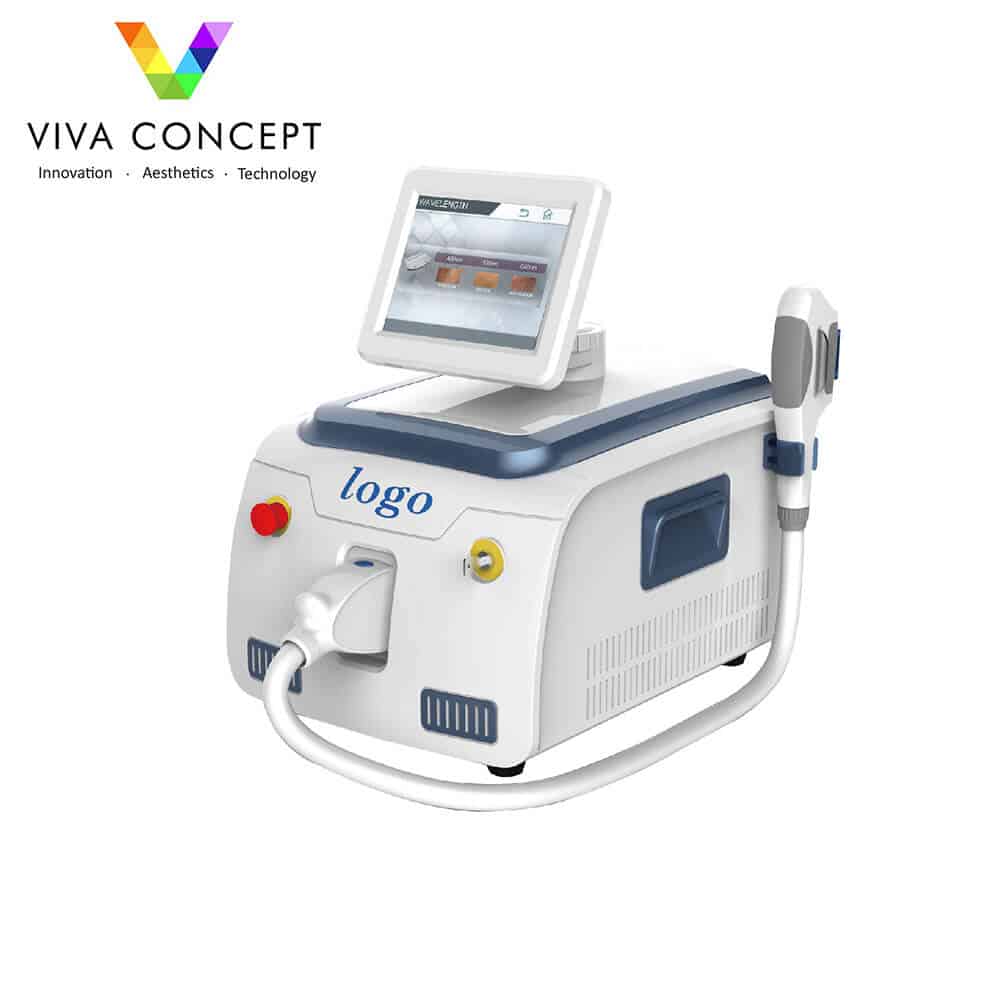

IPL Hair removal machine VA-306

IPL hair removal machine is commonly used for permanent hair removal. IPL (Intense pulsed light) is a wide wavelength spectrum range from 420nm to 1200nm. IPL provides a wide non-invasive  applications based on human skin selective absorption of light.

Features

  • Based on light selective absorption theory.

  • IPL mode + SHR mode in 1 system.

  • 430/530/560/590/640/690nm filters optional.

  • ABS Injection plastic material shell

  • UK Xenon lamp, lifetime 1 million shots.

  • 2*15000uF Japanese imported Capacitor

  • Korean imported filter to purify the water.

  • 360 degree rotatable LCD screen, easy operation

  • 2 years warranty for the machine and main spare parts

ipl removal machine VA-306

Wide range for IPL hair removal machine

Based on light selection absorption technology, IPL hair removal machine is applying to a wide range solicitations. The procedure is completed by changing IPL filters.

Hair removal

IPL SHR machine VA-306 penetrates through epidermis into dermis and is high-selectively absorbed by melanin  in hair and hair follicle, producing photothermal effect, conducting the energy from hair section to hair root, rising the temperature of melanin rapidly and decomposing it, thus reaching the effect of hair removal.

Skin rejuvenation

IPL activates fibroblast to produce new collagen and elastic fibers, consequently smoothes skin and returns elasticity to skin. At the same time, photothermal effect produced by IPL enhances blood vessels’ functionand microcirculation, thus reaching the effect of skin rejuvenation.

Acne treatment

The special spectrum of  IPL penetrates skin and absorbed by porphyrin, stimulates porphyrin to release monomorphism oxyanion which kiss propionibacterium acne efectively.

IPL hair removal machine application

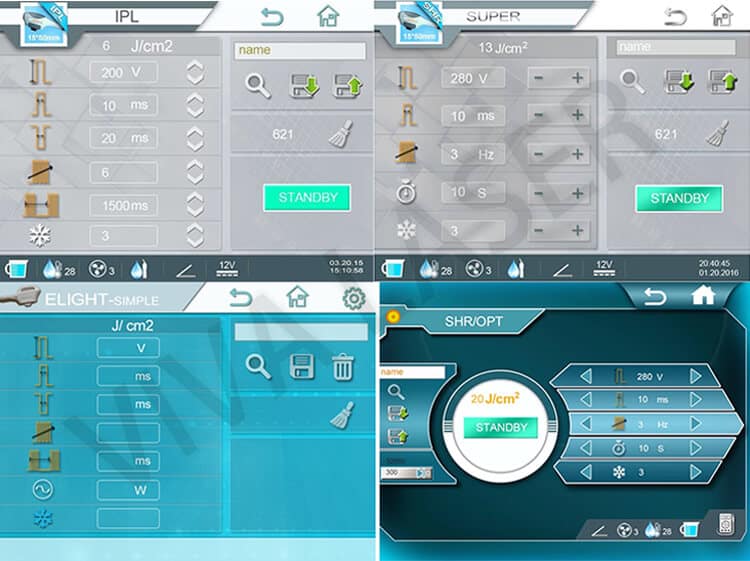

User friendly interface, easy for operation

There are 2 modes for IPL hair removal machine VA-306 operation interface, IPL mode and SHR mode. SHR mode is super hair removal which is fast hair reduction treatment.



IPL hair removal machine interface

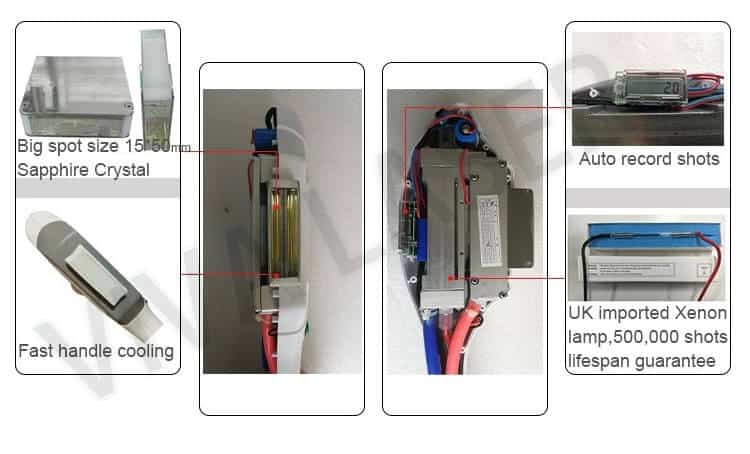

Well designed handpiece

IPL handpiece for VA-306 is well made, using Sapphire Crystal and UK imported lamp. There is counter on the hanpdiece which shows how many shoots has been used.

IPL hair removal machine handpiece

Super Cooling effect

Inner the IPL machine, there are 2 big radiators and 4 big DC fans to keep cool of the machine. The final cooling results on the treatment handpiece could lower than -15℃.

IPL hair removal machine handpiece cooling

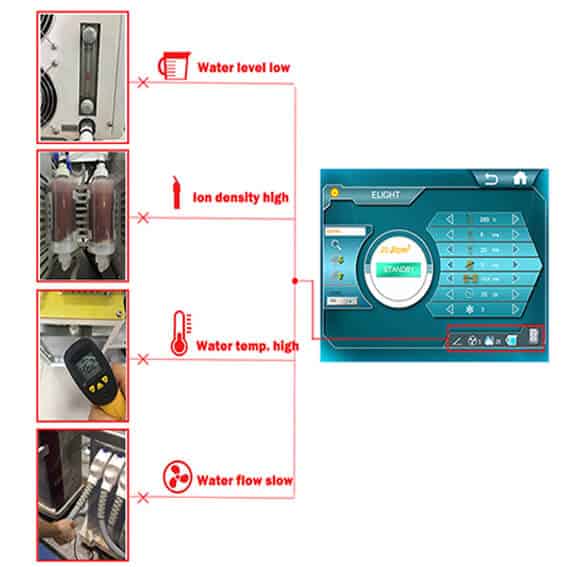

AI warning System

The IPL AI warning System shows the statue for water temperature, water flow, water level and ion density of the filter. Any abnormality the system will remind you automatically.

IPL hair removal machine warning

Applications:

1. Speedy Hair Removal

2. Skin Rejuvenation and Pigmentation Removal

3. Acne Treatment and Wrinkle Removal

IPL SHR machine before and after

Wavelength (Spectrum)

650-950nm;

430/480/560/590/640-1200nm

Energy Density (Fluence)

1-26J/cm2(SHR)

1-50J/cm2(Normal)

Spot Size

15x50mm² (Standard)

12*30mm2 (Optional)

Pulse duration

1-15ms

Pulse

Single

Pulse Repetition Rate

1-10Hz

Timer

1-30s

IPL Peak Power

2400W

Cooling

Continuous Crystal contact cooling (-4°C~4°C ) + Air cooling + Closed water circulation cooling

Stand-by Working

Continuously for 12 hours

Display

8.4″ True Color LCD Touch Screen(Intelligent operation)

Electrical Requirements

100-240VAC, 20A max., 50/60Hz

Net Weight

36kgs

Dimensions (WxDxH)

52*48*58cm

OPT hair removal machine design
