SHR Machine VA-304

SHR machine is also called super hair removal machine, which is the procedure for fast hair removal. Based on traditional IPL technology, SHR hair removal is faster, safer, painless and more comfortable. Meanwhile, SHR frequency could up to 10Hz and has been demonstrated 2.5 to 3 times faster than normal IPL treatment.

Features

  • Flash frequency up to 1-10Hz

  • Sweeping fast hair removal treatment

  • SHR mode and SSR mode 2 in 1 machine

  • ABS Injection plastic material shell

  • SHR energy up to 26J/cm2

  • SHR wavelength 650nm-950nm

  • UK imported lamp, lifespan over 1 million shots

  • Japanese imported 15000uF capacitor

  • 2 years warranty for the machine

SHR machine VA-304

IPL SHR VA-304 is the new generation of IPL. VA-304 is equipped with 2 treatment handpiece, SHR handpiece and SSR handpiece. SHR is short for super hair removal which is used for speedy hair removal treatment. SSR is short for super skin rejuvenation which is used for skin rejuvenation, pigmentation removal and etc. besides, IPL and E-light handpiece is optional if clients have demand.

Hair removal

IPL SHR machine VA-304 penetrates through epidermis into dermis and is high-selectively absorbed by melanin  in hair and hair follicle, then producing photothermal effect, which conduct the energy from hair section to hair root, rising the temperature of melanin rapidly and decomposing it, thus reaching the effect of hair removal.

Skin rejuvenation

IPL activates fibroblast to produce new collagen and elastic fibers, consequently smoothes skin and returns elasticity to skin. At the same time, photothermal effect produced by Victory IPL enhances blood vessels’ functionand microcirculation, thus reaching the effect of skin rejuvenation.

Acne treatment

The special spectrum of VA-304 IPL penetrates skin and absorbed by porphyrin, stimulates porphyrin to release monomorphism oxyanion which kiss propionibacterium acnes efectively.

Product Advantages

Intelligent operation interface

The machine operation system is user friendly . We could set the gender, skin type and treatment first, the program will show the suggested parameters.

SHR machine interface

In-motion SHR technology

The machine uses In-motion shr technology, the handpiece could sweep on our skin during the treatment. It is faster hair removal procedure.

In-motion shr machine

Well made treatment handpiece

The handpiece uses crystal contact cooling, and the Xenon lamp is from UK, life time more than 1 million shots.

Structure design for SHR machine VA-306

The VA-306 is portable design with 2 handpiece (SHR + SSR). Emergency button is designed to prevent any emergency.

SHR machine design

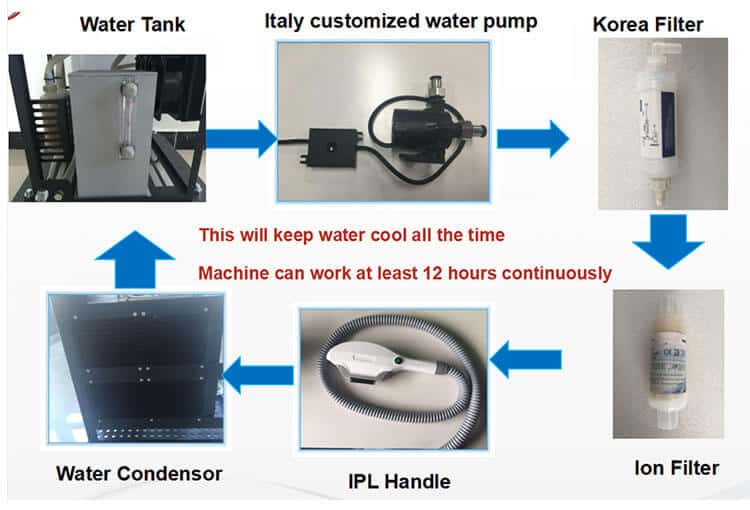

Well running water circulation system

The well desigened water circulation system ensures intense cooling and more than 12 hours continuous working.

Applications:

1. Speedy Hair Removal

2. Skin Rejuvenation and Pigmentation Removal

3. Acne Treatment and Wrinkle Removal

Wavelength (Spectrum)650-950nm(SHR)

570-950nm(SSR)

Energy Density (Fluence)1-26J/cm2 adjustable
Spot Size15x50mm² (SHR),12*33mm2(SSR)
Pulse duration1-15ms
PulseSingle
Pulse Repetition Rate1-10Hz
Time1-30s
IPL Peak Power2500W
CoolingContinuous Crystal contact cooling (-4°C~4°C )

+ Air cooling + Closed water circulation cooling

Stand-by WorkingContinuously for 18 hours
Display8.4″ True Color LCD Touch Screen(Intelligent operation)
Electrical Requirements100-240VAC, 20A max., 50/60Hz
Net Weight29 kgs
Dimensions (WxDxH)52*45*38cm
