Laser Diode machine VA-507
Model: Laser Diode machine VA-507
Big spot size
TEC Cooling System
No-channel diode laser system
Inquiry Now
Big spot size
TEC Cooling System
No-channel diode laser system
Inquiry Now
Laser Diode machine VA-501 is based on selective solar-thermal dynamics, through adjusting the wavelength, energy and pulse width of the laser through the skin to the hair root hair follicles, the heat energy is absorbed and break down the follicle tissue, making hair regeneration.The system of quick freezing point hair removal apply for refrigeration protection,It can make the temperature up to -5℃,It solves a lot difficulties.At the same time , it is safe, quick and permanent technology.
Gold Standard 810nm Diode Laser hair removal

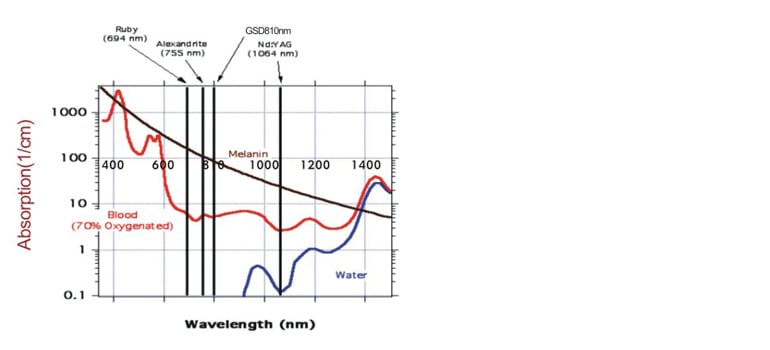

810nm laser diode is the gold standard for hair removal. Light at the wavelength of 810nm is absorbed by melanin in folicle and greatly reduce the absorbtion by water and haematoglobin. Treatment is safe for epidermis.
Applications:
1. Permanent Hair Removal for Skin type I-VI
2. Skin Rejuvenation
3. Effective for whole body Hair Removal
Wavelength | 808nm, 755nm, 1064nm |
Working frequency | 1~10hz |
Energy density | 1-120j/cm2 |
Handle piece cooling | TEC+sapphire |
TEC cooling | 12V6A |
Spot size | 15cm×15cm, 20*25cm, 25 x31mm |
Output power | 600w, 900w, 1200w |

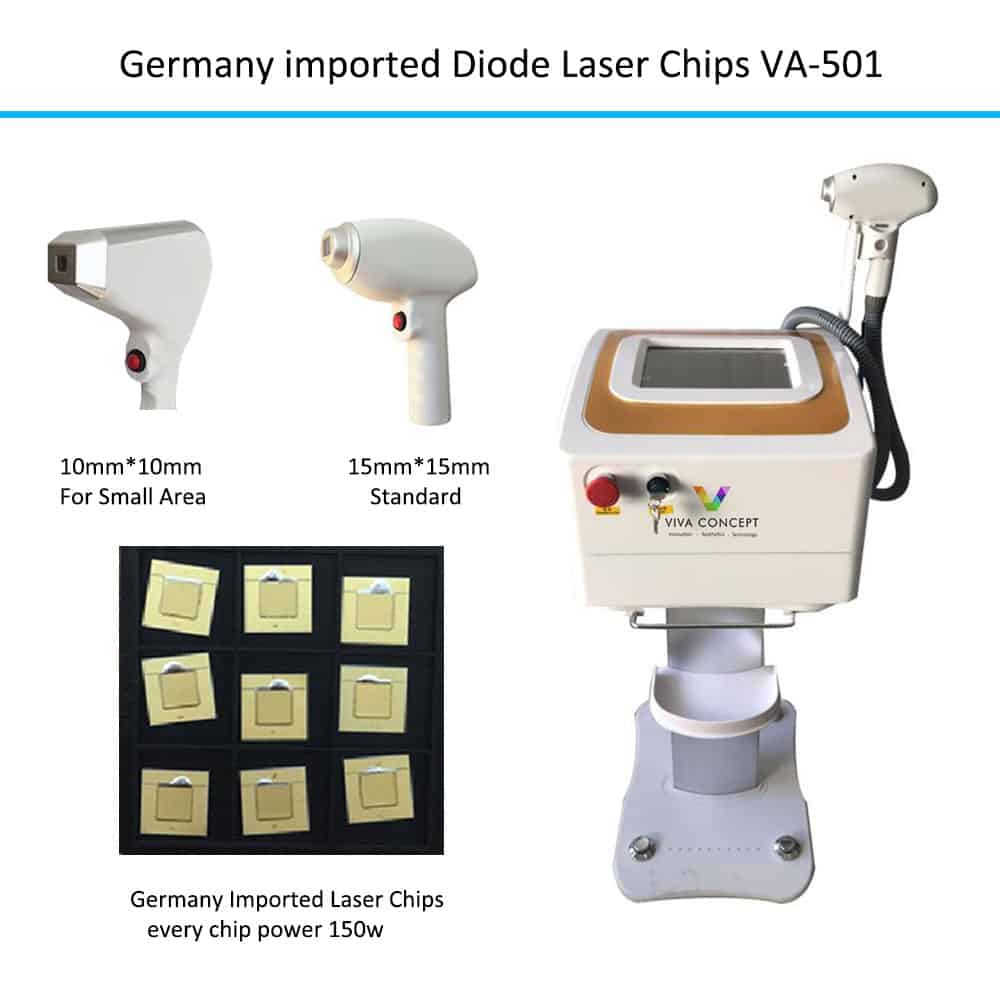

Laser chips | Germany laser Jenoptik,150W/piece |
Pulse width | 5ms~400ms |
Output mode | Pulse output |
Language | Standard English |
display | 8’ color touch screen |
Protective temperature | 55℃ interface select |
Water pump | DP-60 diaphragm rods 12V |
Flow sensor | 3.5L/min flow requirement |
Water level switch | Test water level |
Cooling system | 240×120cooling line(2pc),18 pcs channel |
Cooling fan | 4pcs fans,speed 3150r/min |
Case material | ABS shell/metal shell |
Inter structure | White zinc hob/color zinc hob |
Water tank volume | vertical3.6L/table type 2.5L |
Environmental moisture | < 80% |
Environment temperature | Air conditioning room,temperature≤28℃ |
Voltage | 110V/220V |
